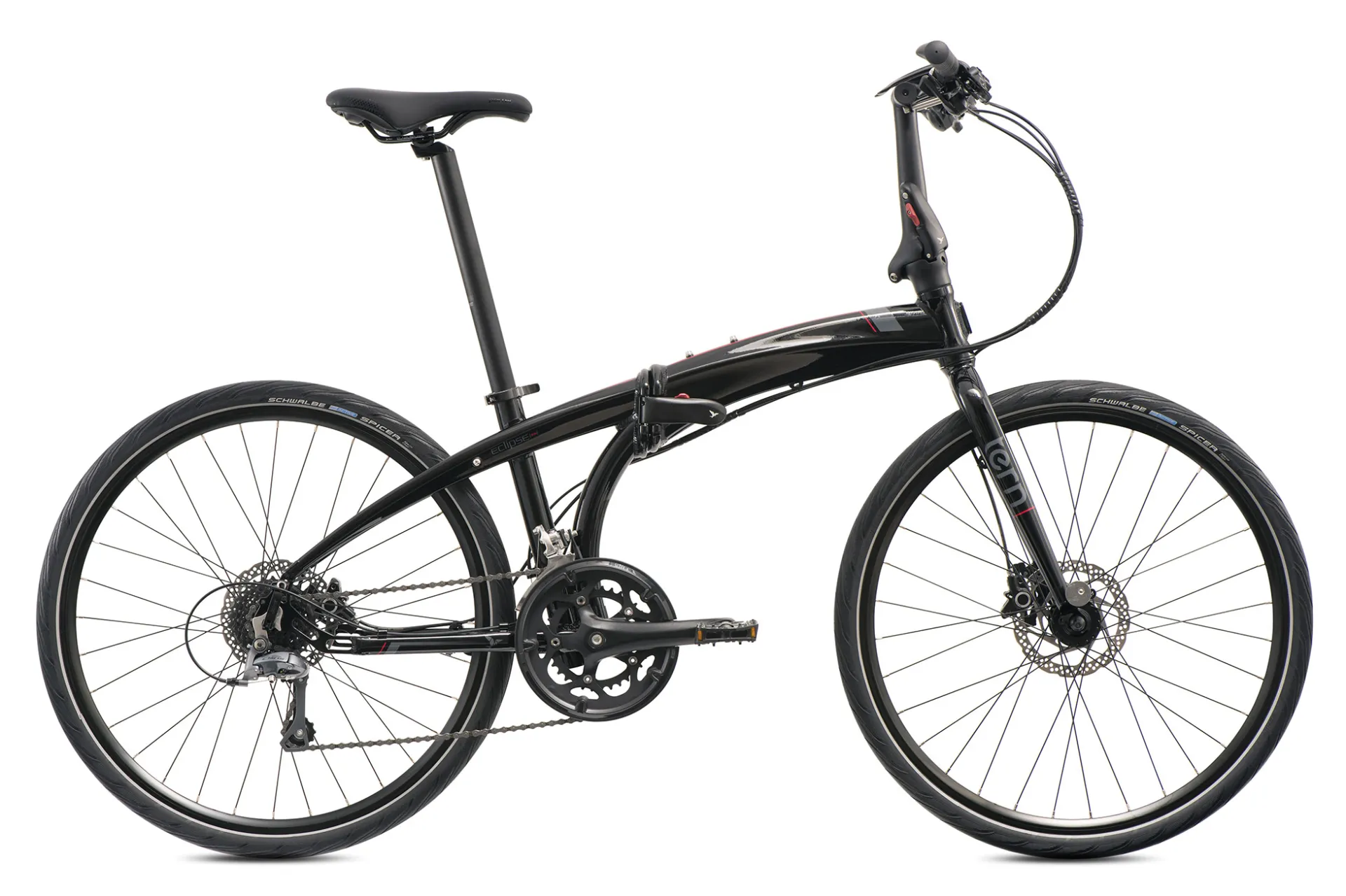

Tern Eclipse D16

The Eclipse D16 delivers the best price-to-performance ratio of any bike in our lineup. Designed with full-sized 26'' wheels, hydraulic disc brakes, and a massively stiff hydroformed Eclipse frame, it ticks all the boxes. Somehow, we managed to get it all in there at an amazing price.

• Best-riding introductory bike in our lineup, thanks to large 26'' wheels and our unique folding technology
• Folds in 10 seconds or less, store it indoors or transport it in your car
• Resizes in seconds to fit a wide range of riders
• Tool-free adjustable handlebar stem lets you change riding positions on the fly
• Fenders for rainy days (included)

Specifications

General Info

Color:

Wheel Size:

26" wheels

Speeds:

2 x 8

Weight:

14.8 kg (32.6 lb)

Folding Size:

44 x 91 x 75 cm (17.3" x 35.8" x 29.5")

Folding Time:

10 seconds

Frame Sizes:

One size

Gear Inches:

29" - 115" (2.28 - 9.14 m)

Distance: Seatpost to Handlebar:

Min: 630 mm (24.8"); Max: 700 mm (27.6")

Distance: Saddle to Pedal:

Min: 795 mm (31.3"); Max: 1050 mm (41.3")

Suggested Rider Height:

148 - 195 cm (4'10" - 6'5")

Max Load Weight:

105 kg (230 lb)

Frame

Frame:

Tern Eclipse, hydroformed aluminum, 3 patented technologies

Fork:

Integrated, hi-tensile steel

Cockpit

Handlepost:

Tern Physis 3D, 3D forged, 5 patented technologies

Stem:

Tern Andros, adjustable, forged construction, patented technology

Headset:

Flux, cartridge bearings, Physis integrated

Handlebar:

Flat bar, 6061-Al

Grips/Bar Tape:

Velo ergonomic, lock-on

Saddle:

Tern Porter, patented GripPad design

Seatpost:

SuperOversize, 6061-Al, micro-adjust clamp

Seatpost Clamp:

SuperOversize, 6061-Al

Brakes

Front Brake:

Shimano, hydraulic disc

Rear Brake:

Shimano, hydraulic disc

Brake Levers:

Shimano, hydraulic disc

Brake Cable & Housing:

Shimano

Wheels

Front Hub:

Shimano, Centerlock disc

Rear Hub:

Shimano, Centerlock disc

Spokes and Nipples:

Stainless steel

Rims:

Doublewall aluminum, disc only

Tires:

Schwalbe Spicer, 40-559, puncture protection, Reflex

Transmission

Shifter(s):

Shimano, trigger, 2 x 8 spd

Front Derailleur:

Shimano Altus

Rear Derailleur:

Shimano Claris

Crankset:

Forged 6061 aluminum crank, 50/34T

Cassette/Freewheel:

Shimano, 11-30T, 8 spd

Bottom Bracket:

Cartridge, sealed bearings

Chain:

KMC 8 spd

Pedals:

Folding, alloy body

Shifter Cable & Housing:

SP

Bells & Whistles

Bell:

Aluminum

Kickstand:

Deluxe center mount

Clip System:

Magnetix 2.0

Luggage Socket:

Yes

Fenders:

RP Chromeplastic, stainless hardware

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
