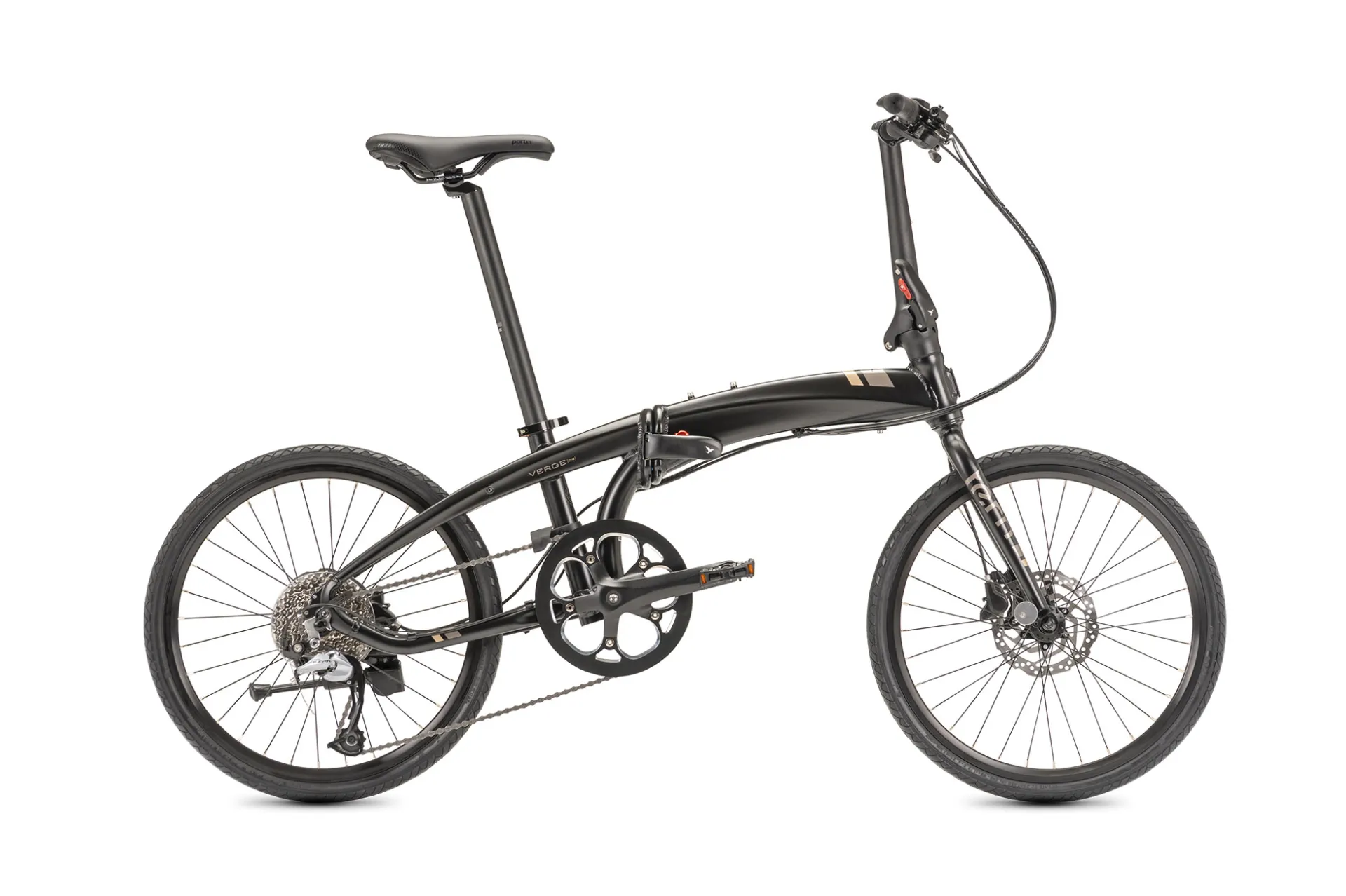

Tern Verge D9

The Verge D9 is a trailblazer. Born out of our 451 Verge design philosophy, it has bigger race wheels, T-Tuned, geometry, and a wide 1x drivetrain. It's about as much value as we could condense into one bike, and it's ready for any upgrades you can throw at it.

• Verge quality, style, and performance at an entry-level price point
• Folds in under 10 seconds, fits under a desk
• Rides with exceptional comfort and stability thanks to our unique technology and T-Tuned geometry
• 451 wheels deliver a full-sized ride with minuscule impact on the folded size
• Shimano Acera drivetrain, with 11-36T for all-purpose versatility
• Tern Porter, saddle for easy shoulder-mounted bike carrying

Specifications

General Info

Color:

Wheel Size:

451 wheels

Speeds:

1 x 9

Weight:

12.2 kg (26.9 lb)

Folding Size:

44 x 80 x 74 cm (17.3" x 31.5" x 29.1")

Folding Time:

10 seconds

Frame Sizes:

One size

Gear Inches:

30" - 97" (2.36 - 7.72 m)

Distance: Seatpost to Handlebar:

Min. 620 mm (24.4"); Max: 670 mm (26.4")

Distance: Saddle to Pedal:

Min: 700 mm (27.6"); Max: 960 mm (37.8")

Suggested Rider Height:

142 - 190 cm (4'8" - 6'3")

Max Load Weight:

105 kg (230 lb)

Frame

Frame:

Tern Verge, hydroformed aluminum, 3 patented technologies

Fork:

Integrated, hi-tensile steel

Cockpit

Handlepost:

Tern Physis 3D, 3D forged, 5 patented technologies

Stem:

Syntace VRO, adjustable, Built for Tern

Headset:

Flux, cartridge bearings, Physis integrated

Handlebar:

Flat bar, 6061-Al

Grips/Bar Tape:

Velo ergonomic, lock-on

Saddle:

Tern Porter, patented GripPad design

Seatpost:

SuperOversize, 6061-Al, micro-adjust clamp

Seatpost Clamp:

SuperOversize, 6061-Al

Brakes

Front Brake:

V, aluminum, linear spring

Rear Brake:

V, aluminum, linear spring

Brake Levers:

V, aluminum bracket/lever

Brake Cable & Housing:

Anti-compression housing, slick cables

Wheels

Front Hub:

Mini, aluminum, QR

Rear Hub:

Formula, 9 spd cassette

Spokes and Nipples:

Stainless steel

Rims:

Doublewall aluminum

Tires:

CST, 37-451, light skinwall, 60 tpi

Transmission

Shifter(s):

Shimano, trigger, 1 x 9 spd

Rear Derailleur:

Yes

Crankset:

Opt: RP Chromeplastic, stainless hardware

Cassette/Freewheel:

Shimano Acera Shadow

Bottom Bracket:

Forged 6061 aluminum, 53T

Chain:

Cartridge, sealed bearings

Pedals:

11-36T, 9 spd

Shifter Cable & Housing:

Folding, alloy body

Bells & Whistles

Bell:

KMC 9 spd

Kickstand:

SP

Clip System:

Aluminum

Luggage Socket:

Deluxe rear mount

Fenders:

Magnetix 2.0

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
