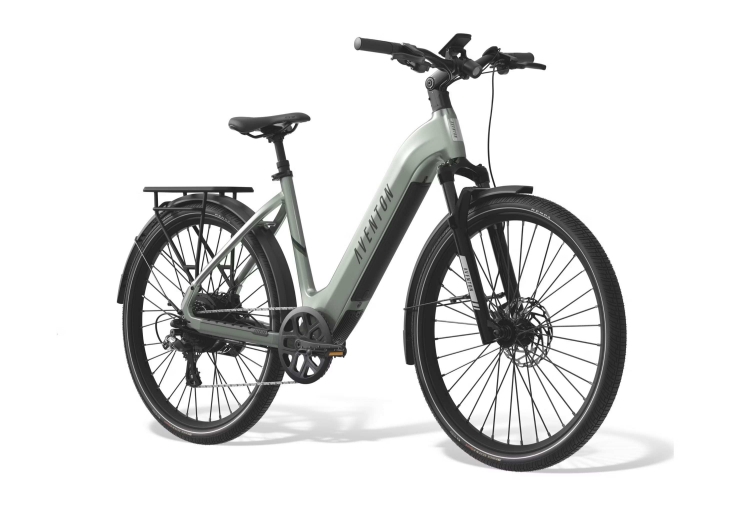

AVENTON LEVEL 3 Step Through Commuter Bike

Technical Overview

The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb

TECHNICAL SPECIFICATIONS

Model: Level 3 Step Through Commuter Ebike

Weight: 67lbs

Total Weight Limit: 300 lbs

Box Size: 61"x13"x34"

Rider Height: 4'11" - 6'1"

Class: Class 2 Ebike

Water Resistance: IPX4

Range: Up to 70 Miles

Battery Safety Certifications: Certified to UL 2271

Frameset

Frame: 6061 Aluminum, Gravity Cast Front Triangle

Fork: Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset

Rear Spacing: 142mm

Fork Spacing: 110mm

Wheelset: Front Wheel 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black

Rear Wheel: 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black

Tires: Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20

Ebike System

Motor: 36V, 500W (sustained), 864W (peak)

Motor Torque: 60Nm

Display: Aventon BC280

Battery: Removable Internal Lithium-ion. 36V, 20Ah, 708Wh, LG 21700 cells

Battery Weight: 8.7lbs

Controller: 36V, 24A

Throttle: Aventon LH Handlebar Mounted

Sensors: Double Sided Bottom Bracket Torque Sensor

Charger: 36V Output: 42V/ 4A

Charging time from 0% to 100%: 5 hours

Lights: Front and rear lights integrated

Brakes

Front Brake: Magura AT-2 Hydraulic disc brake

Rear Brake: Magura AT-2 Hydraulic disc brake

Front Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor

Rear Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor

Drivetrain

Rear Derailleur: Shimano Altus RD-M310

Shifter: Shimano 8 Speed Trigger SL-M315-8R

Chain: 7/8 speed 120L

Cassette: 12-32T / 8 Speed Shimano CS HG200-8

Chainring: 48T

Chainring BCD: 104

Crankset: 3pc, 170mm crank arm

Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

Pedals: 9/16" Composite Platform

Cockpit

Saddle: Aventon Saddle

Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm travel

Seatpost Clamp: 34.9mm

Handlebars: Aluminum 31.8mm, 680mm

Grips: Aventon Lock on grips

Headset: Sealed Bearing Headset

Included Accessories

Rear Rack Weight Limit: 60lbs
